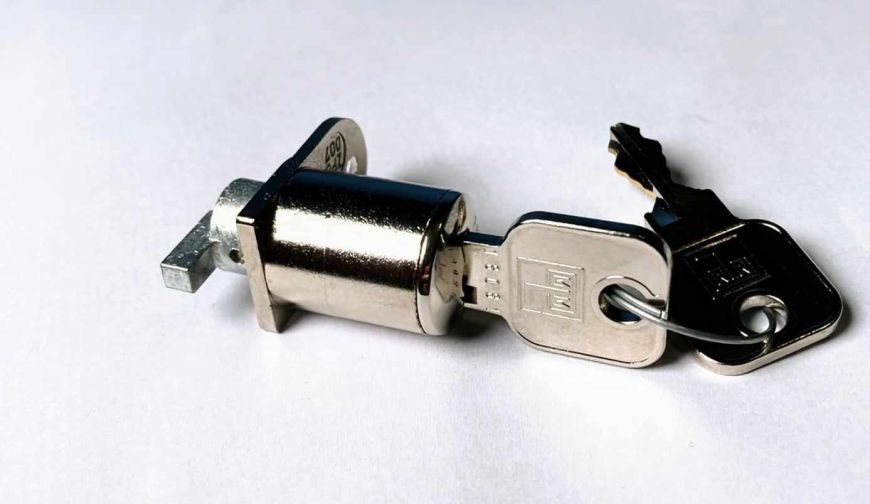

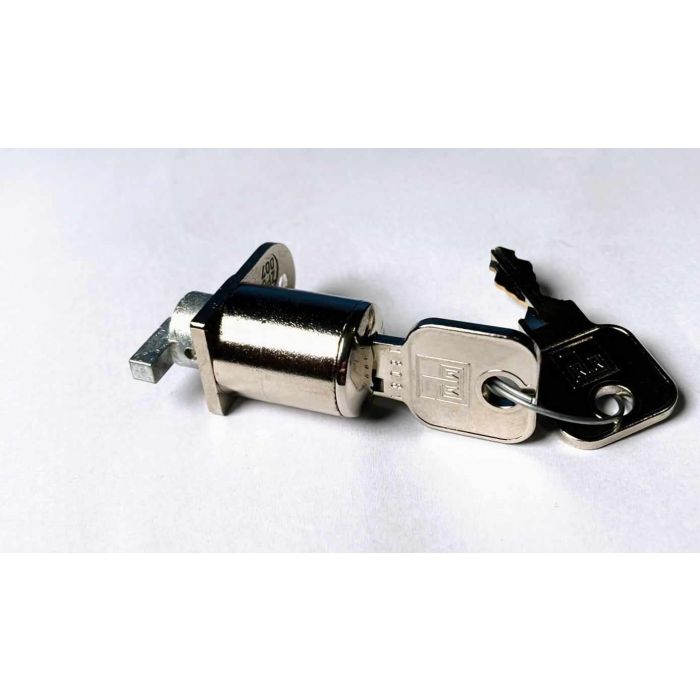

MLM Lehmann System 47 Central Pedestal Lock Housing 10mm Pin

System 47 central pedestal lock housing is used for locking wide filing cabinets with a centrally located lock. Turning the key will rotate the bars which in turn will locate at either side of the drawer and locking it. Supplied as a housing only and is compatible with all of the MLM Lehmann’s 16.5mm cylinders as well as the range of furniture handles.

Features

Nozzle Diameter: 16.5mm

Nozzle Length : 20mm

Pin Length: 10mm

Right handed lock

Finish: Nickel Plated

Material: Steel

Keys Supplied : 2

Manufacture Code : ULO144700461
